Chapman CFM150 1.5m Heavy Duty Compact PTO Flail Mower

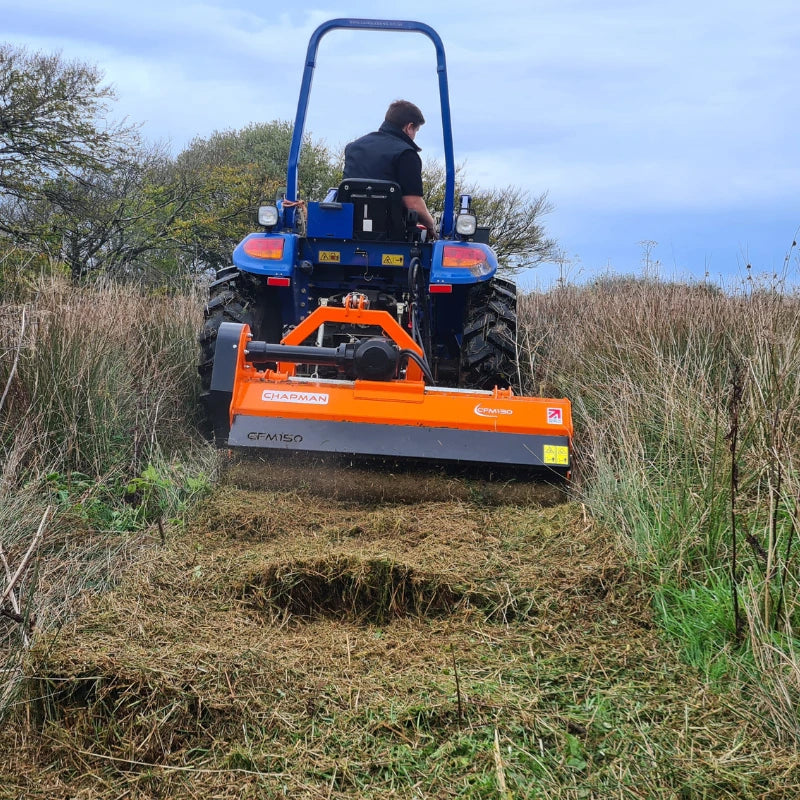

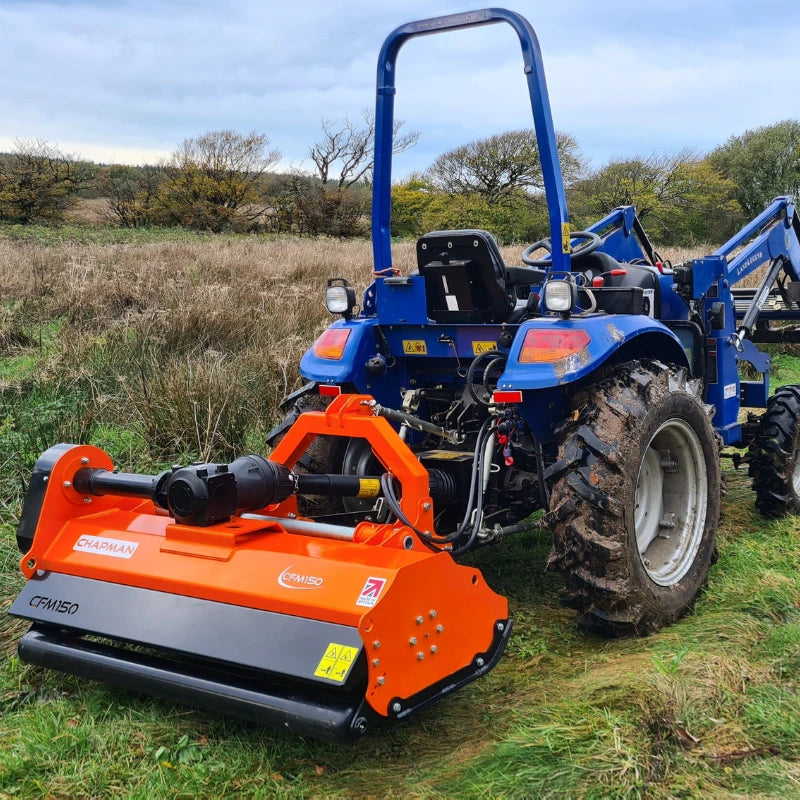

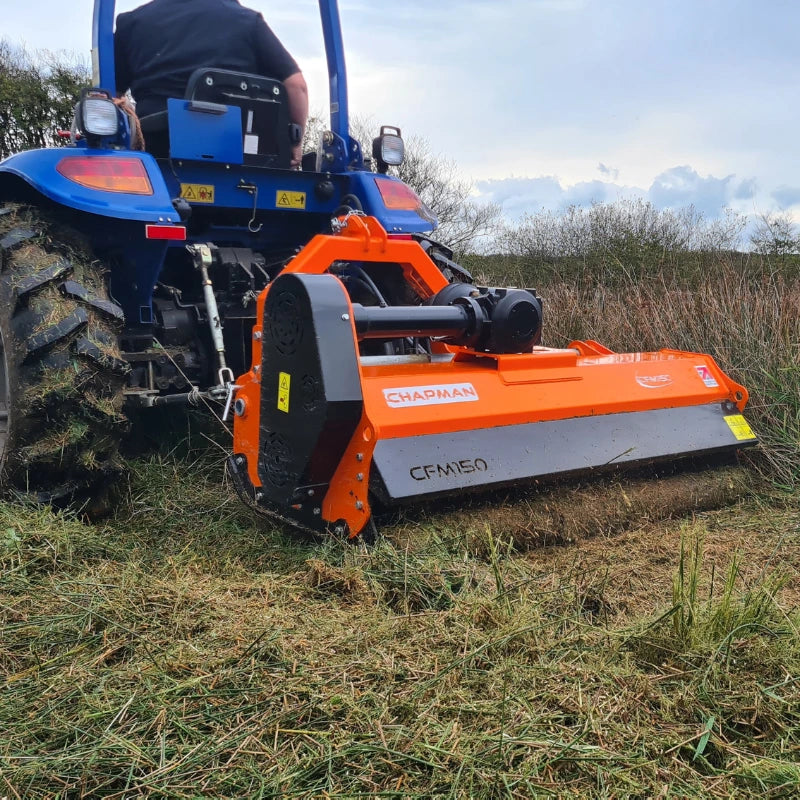

The CFM150 PTO flail mower is engineered for robust performance and durability. It is compatible with compact tractors ranging from 25 to 50 horsepower and is specifically designed to tackle dense vegetation and overgrowth. The mower comes standard with a hydraulic side-shift feature, allowing for effortless manoeuvring around trees and other obstacles.

RELIABLE AND STURDY
The Chapman Compact Flail Mower series is outfitted with high-quality, dependable Italian gearboxes, making it ideal for tractors within the 25-50hp range.

The CFM150 tractor flail mowers have a hydraulic side-shift capability of up to 350mm, facilitating easy navigation around trees and various obstructions.

OUTSTANDING PERFORMANCE

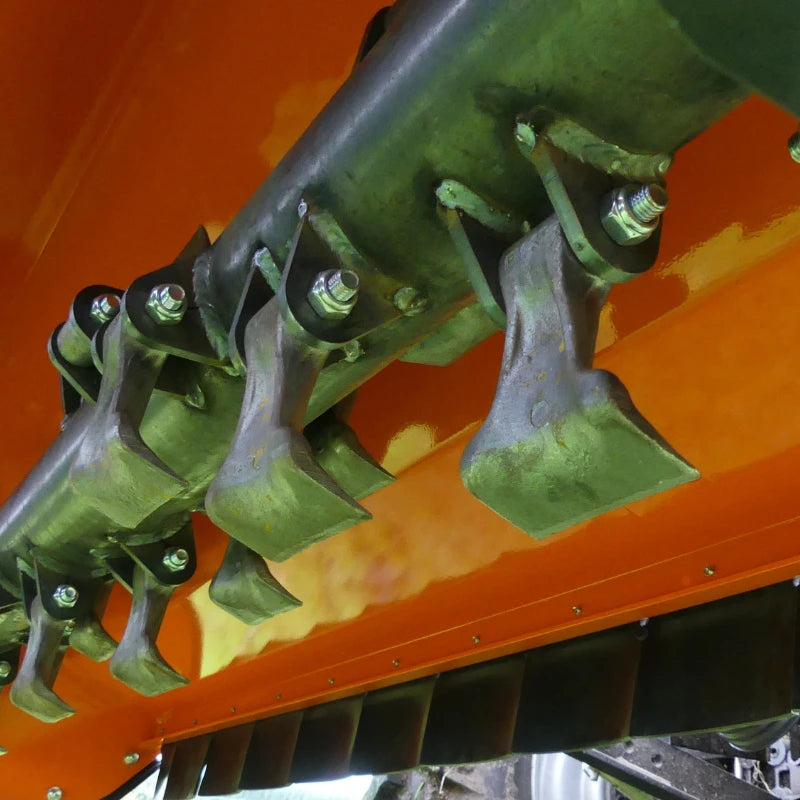

The CFM has 22 large, heavy-duty forged flail hammers that deliver exceptional results when cutting through rushes, brambles, and other tough vegetation.

This flail mower utilizes Triple B Belts to enhance reliability and power transfer. A rear roller is included to prevent the mower from digging into uneven terrain.

INNOVATIVE ROTOR DESIGN

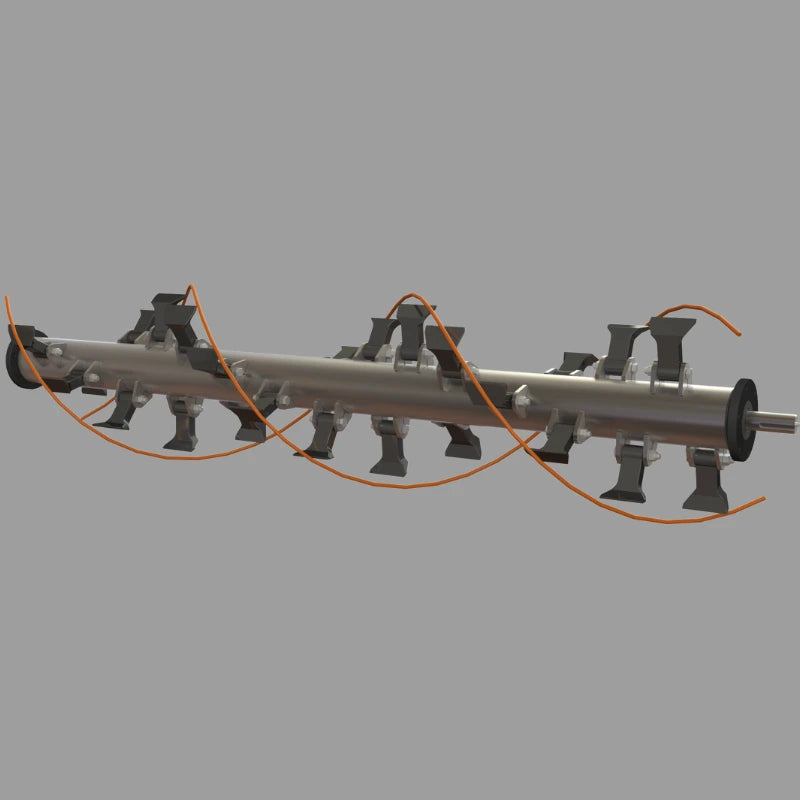

These flail mowers' advanced rotor design features a solid 45mm diameter drive shaft, running through the centre of the rotor, complemented by a structural grade 115mm diameter outer tube. The flail lugs are welded in a spiral configuration, optimizing the transfer of cutting power from the engine to the cutting heads. This provides a cleaner cut and superior performance in challenging conditions. The rotor also includes double-row spherical roller bearings for enhanced reliability.

DESIGNED FOR EFFICIENCY

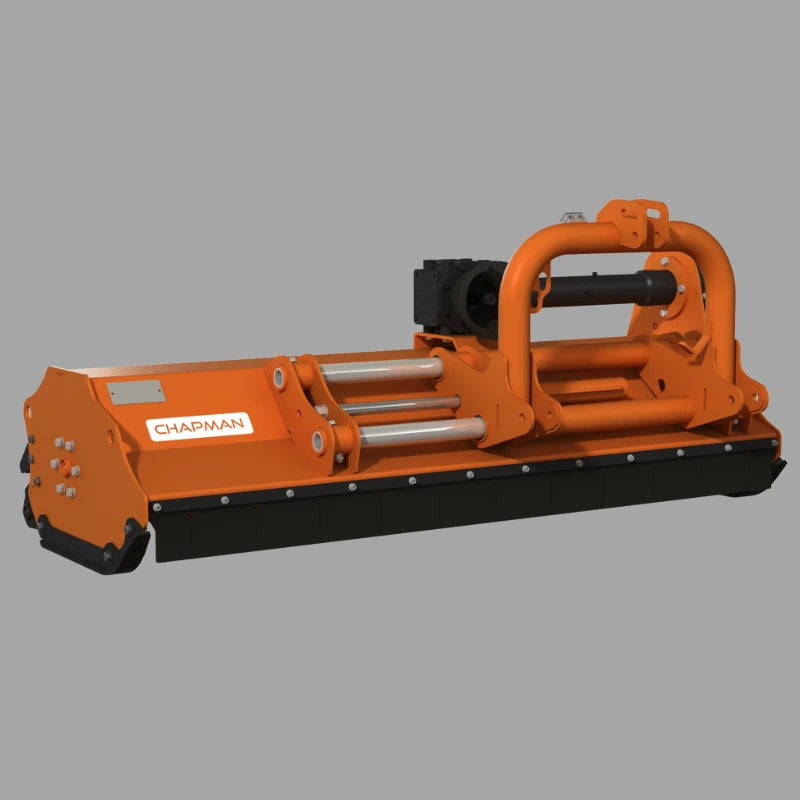

The CFM Compact Flail Mower is built from heavy-duty all-steel materials and finished with a powder coating to ensure longevity. It is compatible with CAT 1 and CAT 2 hitches, accommodating various tractor requirements. A cutting height range of 25-100mm, makes it ideal for smallholders and estates.

CFM150 Chapman Tractor Flail Mower Specifications:

• Weight: 370 kg
• Cutting Width: 1.5 m
• Cutting Height Range: 25-100 mm
• Rotor Speed: 2200 RPM
• Number of Hammer Flails: 22 forged hammer flails for efficient cutting
• Gearbox Rating: Suitable for 25-50 HP tractors
• Attachment Compatibility: CAT 1 & CAT 2 hitch systems for versatile tractor fitting
• Drive System: 3 x B-type belt drive for reliable power transmission

Chapman PTO CFM150 Tractor Flail Mower Features:

• Heavy-Duty Construction: 5mm reinforced deck with 8mm side plates for durability and longevity.
• Hydraulic Offset Adjustment: 0-350 mm, allowing for precise cutting along fences, trees, and field edges.
• Dynamically Balanced Rotor: G6.3 balancing ensures smooth operation and reduced vibration.
• Rear Roller Included: Prevents scalping and maintains an even cut across uneven terrain.
• Forged Hammer Flails: High-quality flails provide a powerful and efficient cutting performance.
• Adjustable Cutting Height: 25-100 mm, making it suitable for different types of grass and vegetation.
• Designed for Power Efficiency: Compatible with 25-50 HP tractors, ensuring optimal performance without excessive strain.
