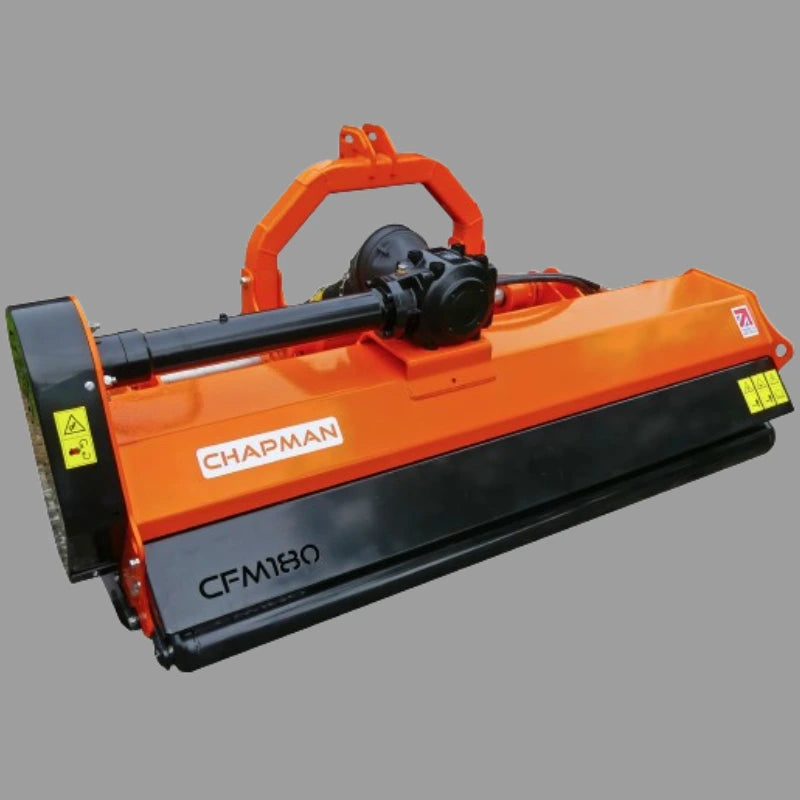

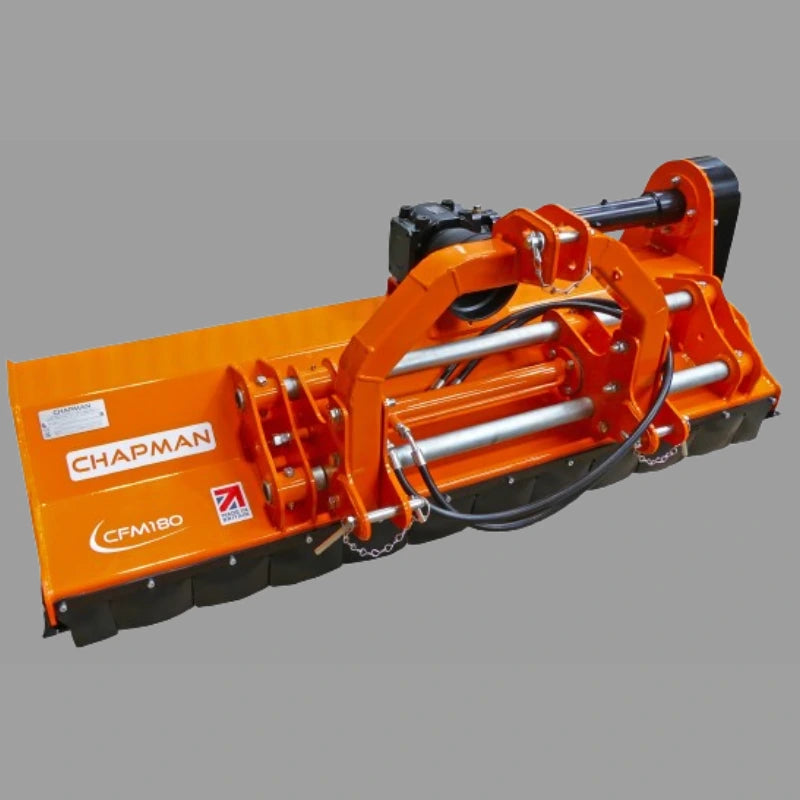

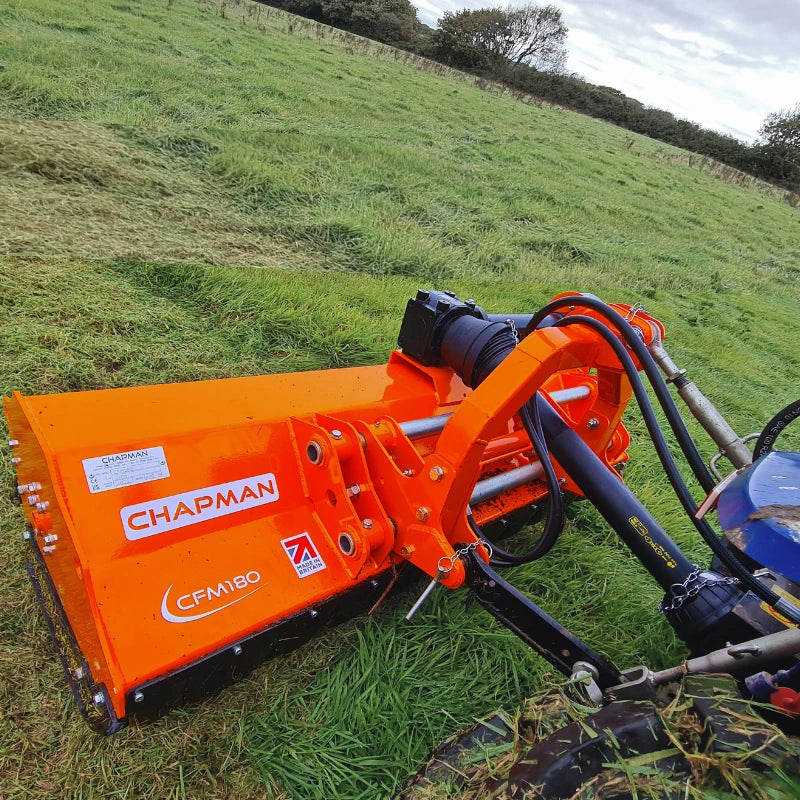

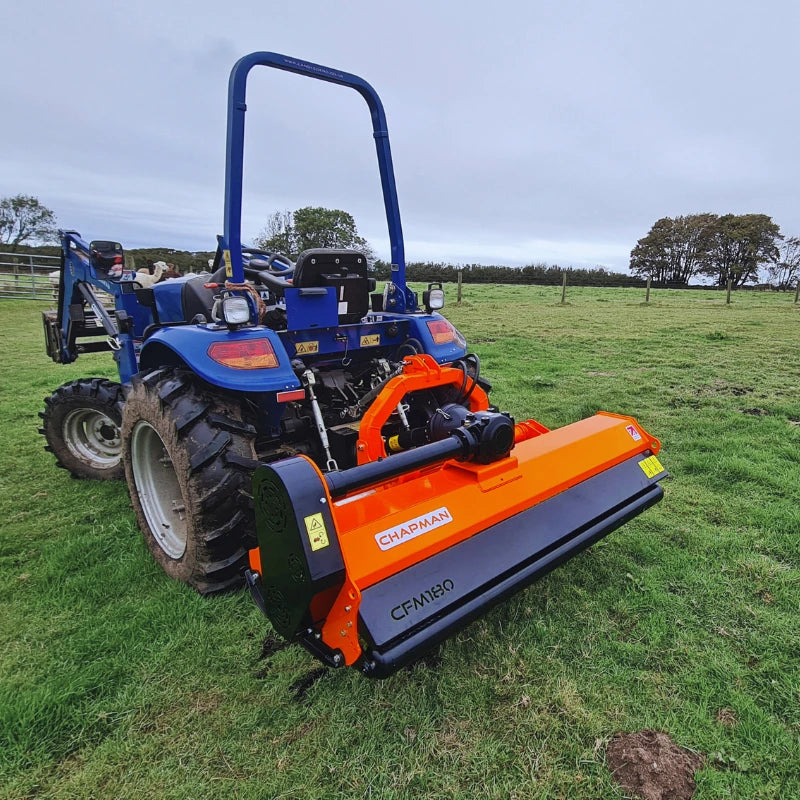

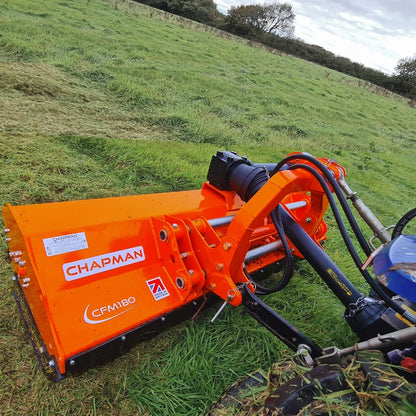

Chapman CFM180 1.8m Heavy Duty Compact PTO Flail Mower

The Chapman CFM180 is engineered for robust performance and durability. It is compatible with compact tractors ranging from 25 to 50 horsepower and is specifically designed to tackle dense vegetation and overgrowth. This mower comes standard with a hydraulic side-shift feature, allowing for effortless manoeuvring around trees and other obstacles.

RELIABLE AND STURDY
The CFM flail mowers are outfitted with high-quality, dependable Italian gearboxes, making them ideal for tractors within the 25-50hp range.

These tractor mower attachments offer various working widths and a hydraulic side-shift capability of up to 350mm, facilitating easy navigation around trees and other obstructions.

OUTSTANDING PERFORMANCE
The CFM180 robust forged flail hammers deliver exceptional results when cutting through rushes, brambles, and other tough vegetation.

The flail mower utilizes Triple B Belts to ensure maximum reliability and enhanced power transfer. A rear roller is included to prevent the mower from digging into uneven terrain.

INNOVATIVE ROTOR DESIGN
The advanced rotor of this flail mower features a solid 45mm diameter drive shaft, running through the centre of the rotor. A structural grade 115mm diameter outer tube, onto which the flail lugs are welded in a spiral configuration.

The distinctive design optimizes the transfer of cutting power from the engine to the cutting heads, resulting in a cleaner cut and improved performance in challenging conditions. The rotor also includes double-row spherical roller bearings for enhanced reliability.

DESIGNED FOR EFFICIENCY
Chapman CFM180 flail mowers are heavy-duty all-steel construction and have a powder-coated finish, ensuring a long service life.

Compatible with CAT 1 and CAT 2 hitches the CFM180 flail mower fits most compact tractors.  Offering cutting heights between 25-100mm, this machine is an excellent choice for smallholders and estates.

CFM180 Chapman Tractor Flail Mower Features:

• Weight: 400 kg
• Cutting Width: 1.8 m
• Cutting Height Range: 25-100 mm
• Rotor Speed: 2200 RPM
• Deck Steel Thickness: 5mm reinforced cover, 8mm side plates for durability
• Number of Hammer Flails: 28 forged hammer flails
• Gearbox Rating: Designed for tractors with 25-50 HP
• Offset Adjustment: 0-350 mm hydraulic offset
• Attachment Compatibility: Fits both CAT 1 & CAT 2 hitch systems
• Drive System: D3 x B-type belt drive for reliable and consistent power transmission
• Rotor Balancing: G6.3 dynamically balanced for smooth and vibration-free operation

Chapman CFM PTO Tractor Flail Mower Features:

• Robust Heavy-Duty Construction: 5mm reinforced deck and 8mm side plates for superior durability and impact resistance.
• Hydraulic Offset Adjustment: The offset range between 0-350 mm adds flexibility when cutting along fences, trees, and field edges.
• Smooth and Efficient Operation: A dynamically balanced rotor (G6.3) ensures reduced vibration and extended machine lifespan.
• Integrated Rear Roller: Helps maintain an even cut and prevents scalping on uneven terrain.
• Forged Hammer Flails: 28 high-performance flails provide powerful cutting, mulching, and fine debris distribution.
• Versatile Cutting Heights: Adjustable between 25-100 mm for precise grass and vegetation management.
• Optimized for Power Efficiency: Suitable for 25-50 HP compact tractors, delivering consistent performance.
