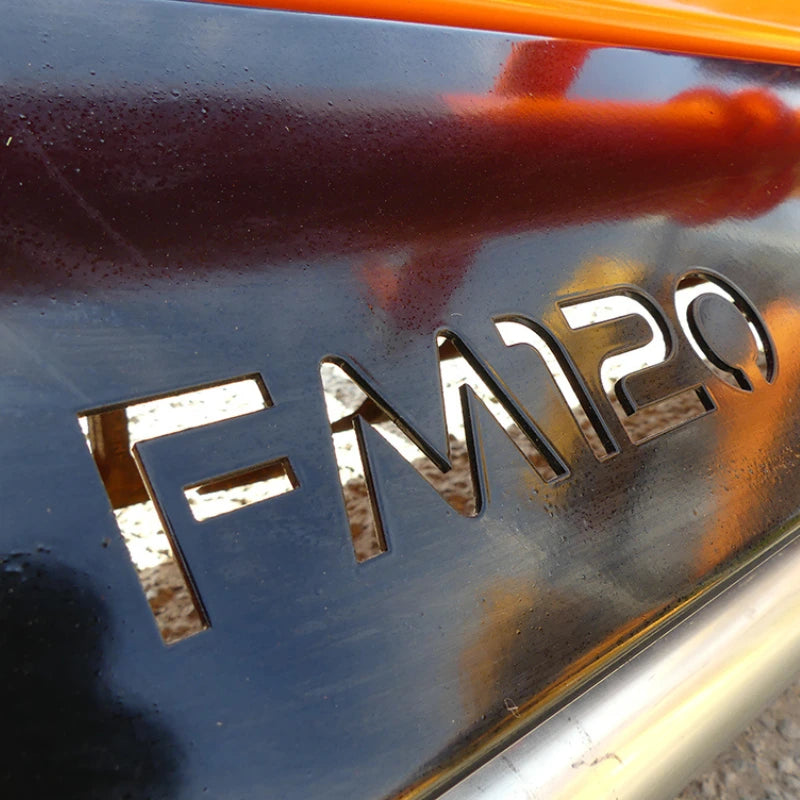

Chapman FM120 1.2m Heavy Duty ATV Flail Mower

The Chapman 1.2m Heavy Duty ATV Flail Mower - FM120 is built to last, featuring a reliable Honda engine and robust construction that ensures durability over years of operation.

This mower is engineered to handle various mowing tasks, from tackling thick rushes to finely manicuring parkland. Our Flail Mowers are equipped to manage any challenge presented to them.

POWER & PERFORMANCE

Equipped with a powerful 21hp Honda GX630 V-Twin Engine, Chapman mowers deliver exceptional power and performance. Each unit includes a heavy-duty rear roller designed to prevent scalping. The compact design of the FM Series allows for a low centre of gravity, enhancing stability and enabling easy cutting beneath trees and overhanging branches.

CLEAN & RELIABLE

Standard features of the FM Series include a centrifugal clutch that ensures safe and efficient operation from the towing vehicle. This clutch automatically engages and disengages the drive, while the automatic tensioning assembly minimizes maintenance by adjusting for belt wear and load.

UNIQUE ROTOR DESIGN

Our advanced rotor design features a solid 40mm diameter drive shaft at the centre, surrounded by a structural grade 90mm diameter outer tube, with flail lugs welded in a spiral configuration. This innovative setup enhances the transfer of cutting power from the engine to the cutting heads, resulting in cleaner cuts and improved performance in challenging conditions. Additionally, the rotor is equipped with specialized bearing guards to protect against damage from string and wire.

CLASS-LEADING

The FM Series is outfitted with heavy-duty steel ‘Y’ flails, ensuring a clean and effective cut in any scenario. The mower also offers simple height adjustments for user convenience, and robust B Section drive belts for low-maintenance operation, making it a top choice in the ATV Flail Mower category.

Chapman FM120 ATV flail Mower Specifications:

• Weight: 305kg
• Cutting Width: 1.2m
• Cutting Height: 25-225mm
• Rotor rpm: 2400rpm
• Number of Blades: 44 "Y" flails
• Engine Power: 21HP Honda Petrol Engine
• Wheel Type: 22x11x8 inches
• Fuel Tank Capacity: 10L
• Belt Size: 2xBX41 cogged belts w/automatic tensioning system
• Rotor Balancing: G6.3 Dynamic balanced

FM120 ATV flail Mower Features:

• Powerful 21hp Honda Petrol Engine.
• Heavy-duty construction throughout.
• Unique double helix flail rotor.
• Large-diameter tyres for smooth travel.
• Automatic belt tension system.
• Heavy-duty "Y" flails.
