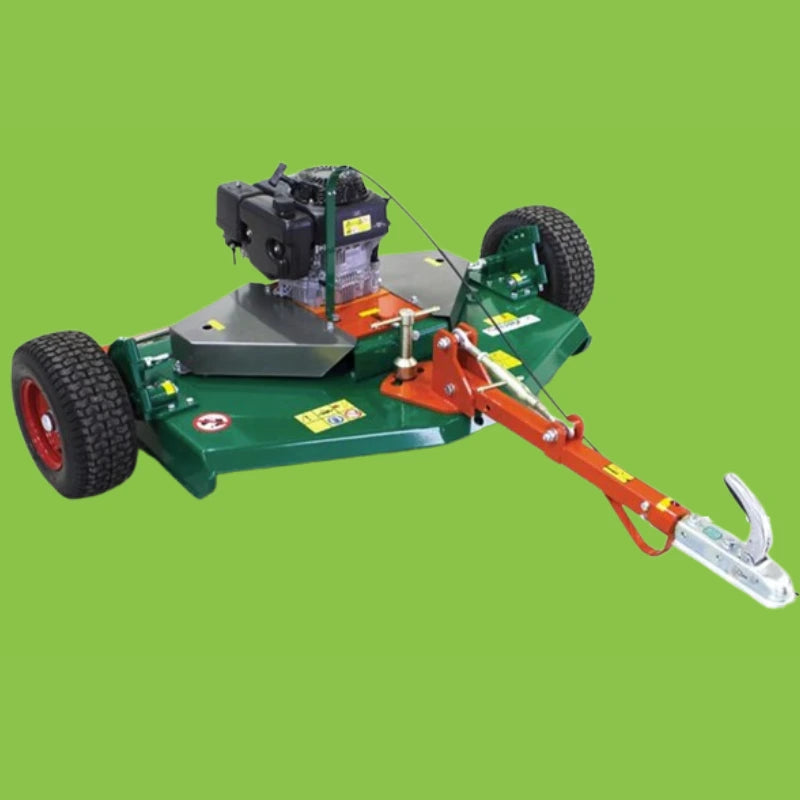

Wessex AR-120 1.2m Heavy Duty ATV Rotary Mower

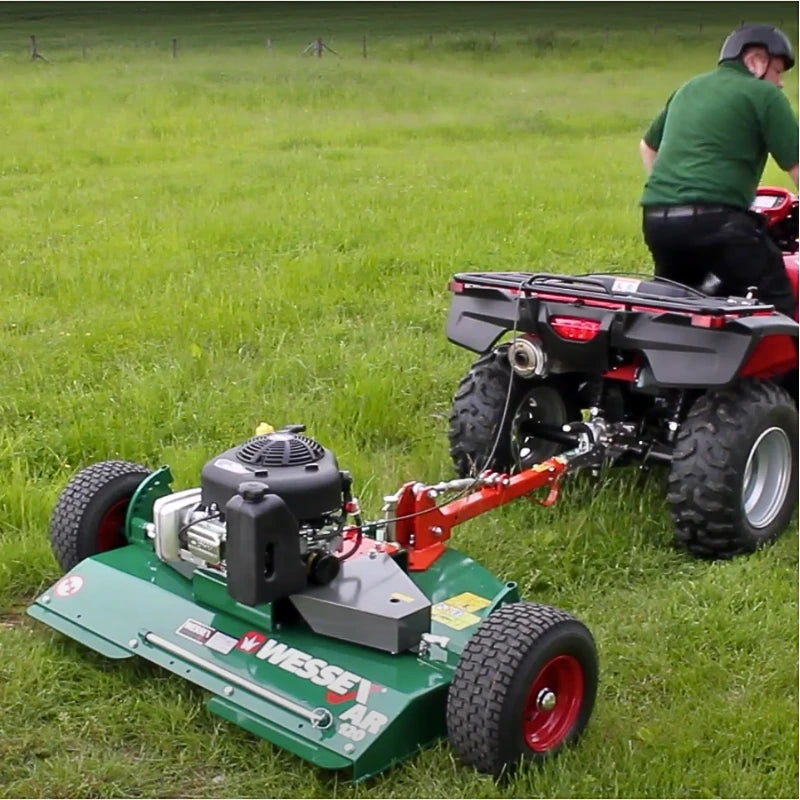

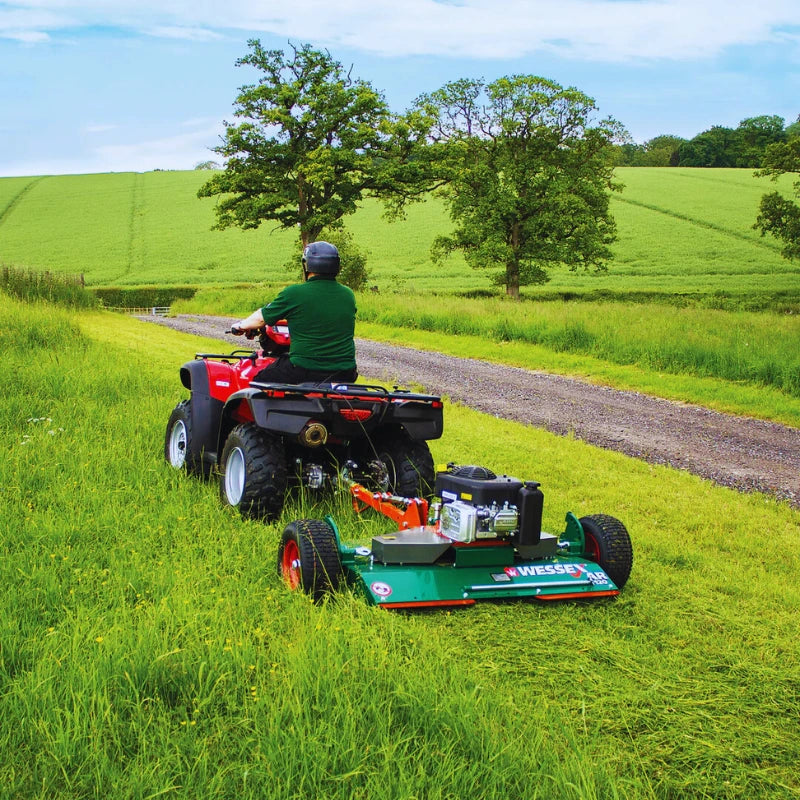

The Wessex AR-120 1.2m Heavy Duty ATV Rotary Mower is an ideal solution for topping paddocks and maintaining regularly mowed grass areas. With a 1.2m cutting width and powered by a 12.5HP Briggs & Stratton engine, it is particularly effective for general pasture topping as well as fine turf applications, making it a favoured choice among farms, studs, and private estates. This mower is designed to work seamlessly with ATVs, utility vehicles, or 4x4s.

Standard models come equipped with side-mounted wheels, enabling them to navigate ground contours accurately without causing scalping. For situations where mowing close to borders and fences is necessary, a model with rear-mounted wheels is available. This configuration significantly increases the weight on the ball hitch, so it is essential that the towing vehicle has sufficient weight capacity on the drawbar. In this setup, the entire weight of the AR quad bike mower rests on its own wheels, allowing the drawbar to float freely.

AR-120 Wessex ATV Rotary Topper Mower Features:

• 5mm Deck: Shot-blasted and powder-coated for enhanced durability.
• Swivelling Ball Hitch: Complies with Health and Safety recommendations.
• Turn Buckle on Drawbar: Ensures a level machine for an even cut.
• Offset Drawbar: Allows cutting outside the quad's wheelings for better reach.
• Throttle Lever: Clips onto the ATV rack for easy and convenient operation.

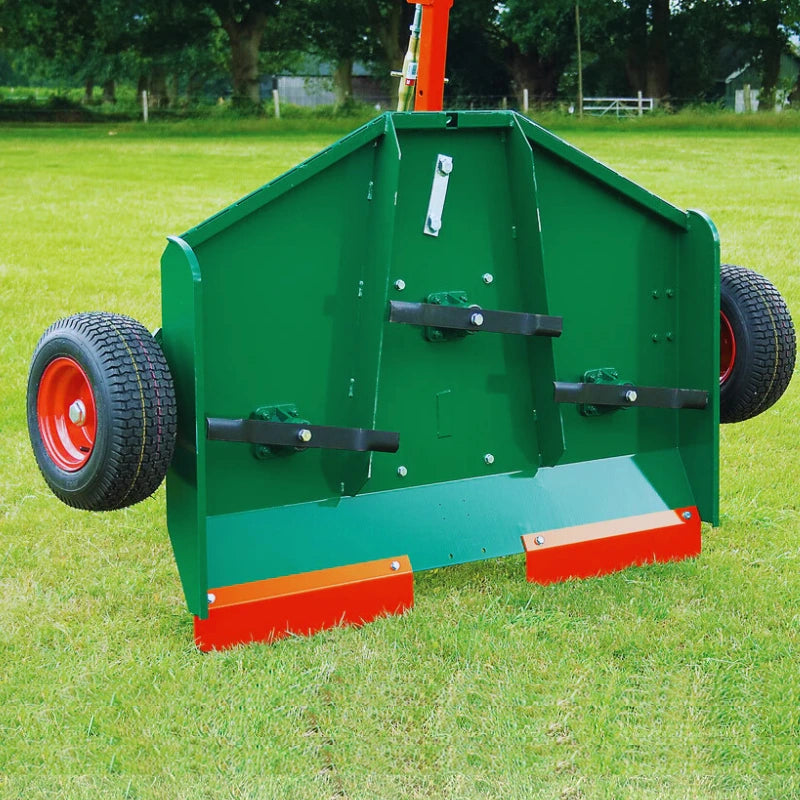

• Heavy-Duty Blades: Upturned trailing edge for durability and strong suction effect.
• 16 x 6.50-8 Tyres: Provides stability and durability on various terrains.
• In-Line Wheels with Rotors: Improves balance, reduces drawbar weight, and enhances ground contour following.
• Friction-Welded Spindles: Housed in heavy castings for maximum strength and longevity.
• Centrifugal Clutch: Enables safe and smooth blade engagement/disengagement from the seat.
• Simple Belt Adjustment: Single sliding action tensions both belts simultaneously for easy maintenance.

Wessex AR-120 ATV Rotary Topper Mower Specifications:

• Weight: 218kg
• Cutting Width: 120cm
• Overall Width: 170cm

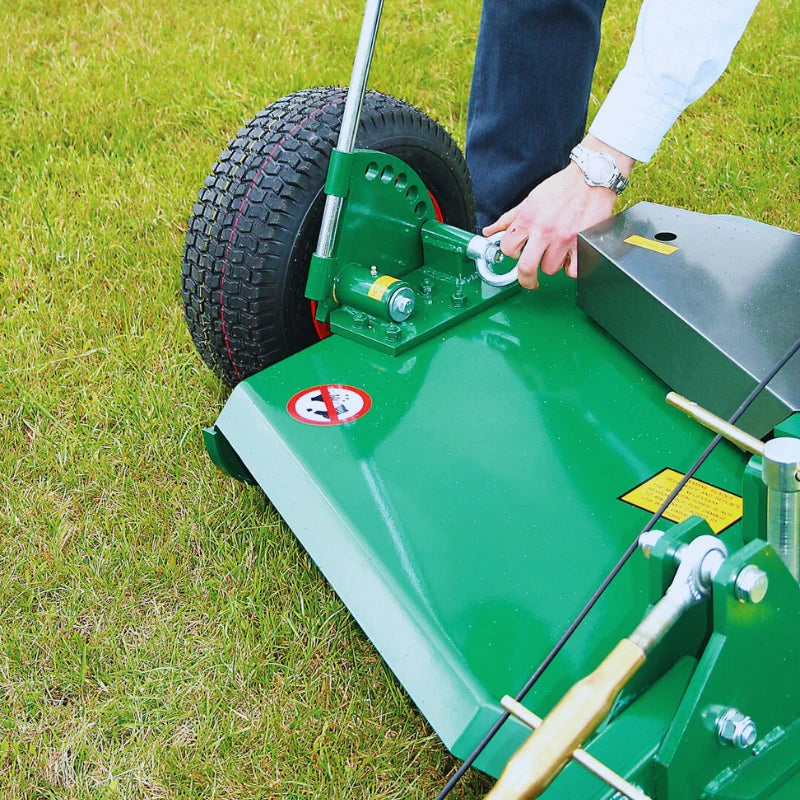

• Cutting Height Range: 25-140mm
• Engine: Briggs & Stratton 12.5HP
