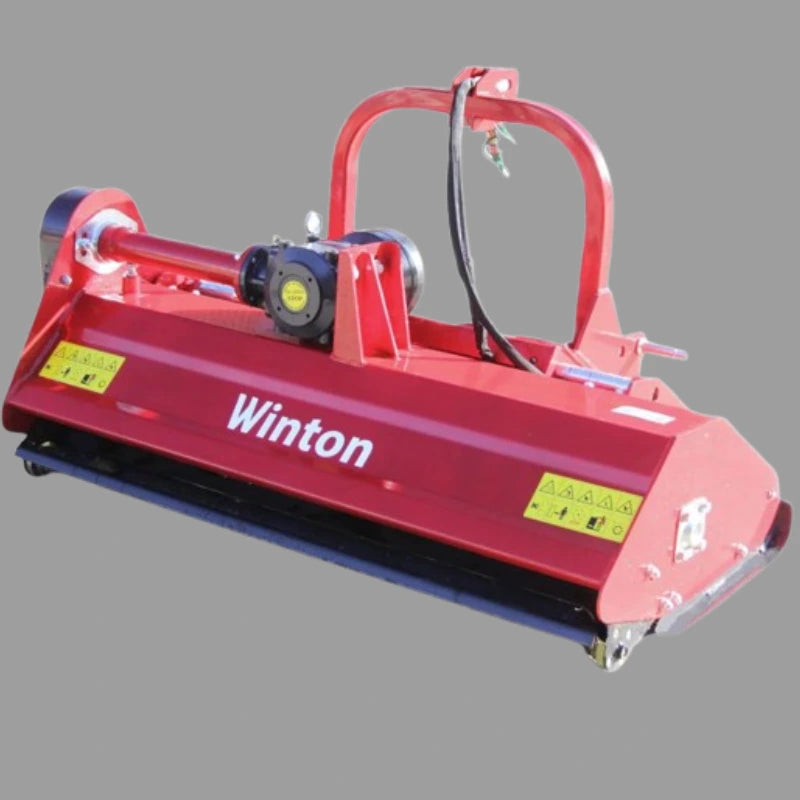

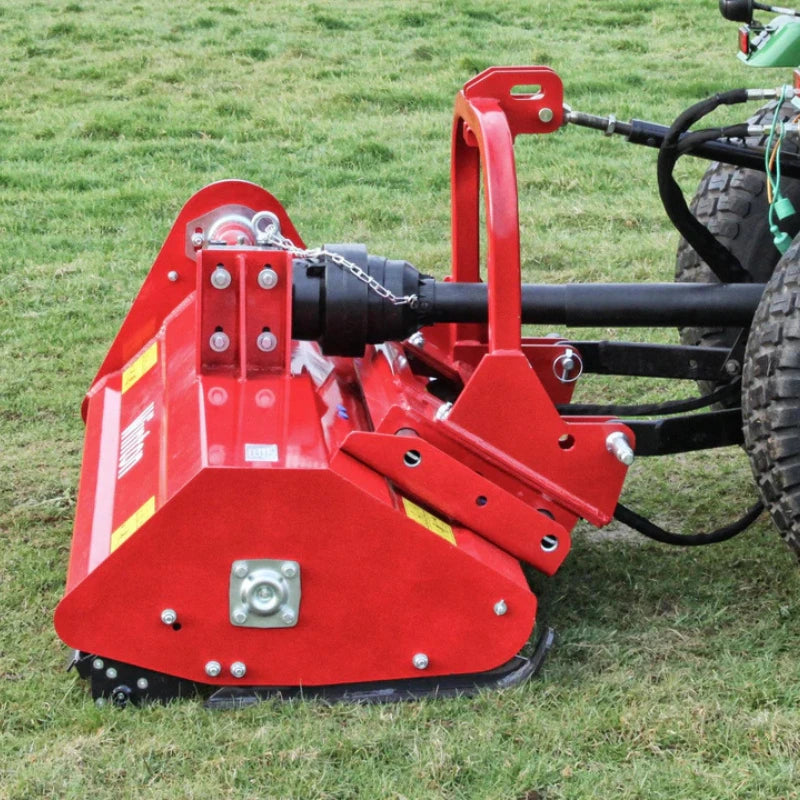

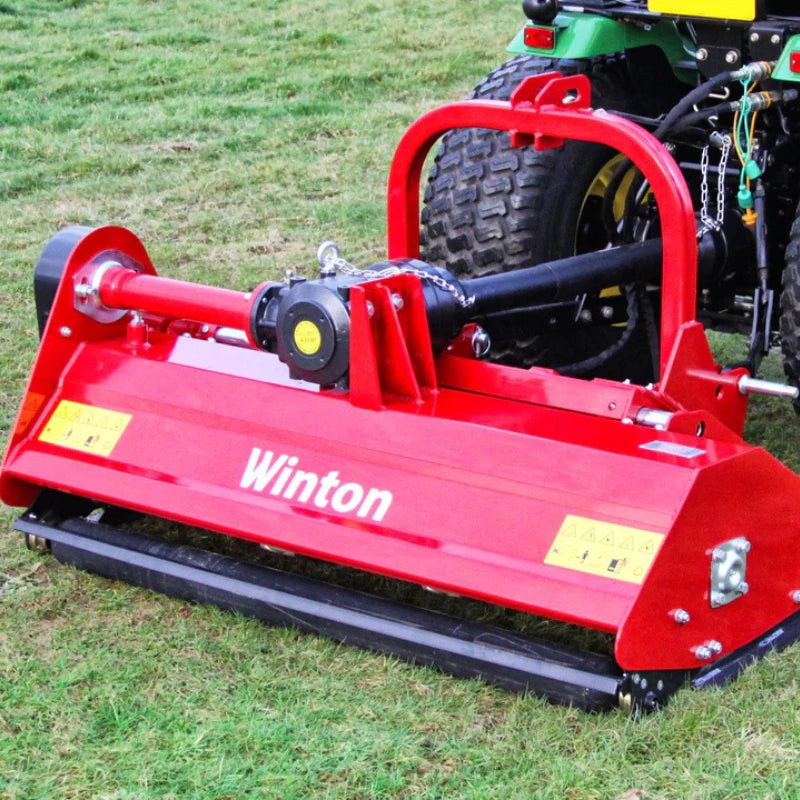

Winton WHF125 1.25m Heavy Duty Tractor PTO Hydraulic Side-Shift Flail Mower

The WHF125 Winton 1.25m Hydraulic Side-Shift Flail Mower is an excellent solution for managing overgrown landscapes. This mower comes equipped with a hydraulic side shift A-frame as a standard feature, enhancing its manoeuvrability and allowing for improved access to difficult-to-reach areas. It requires one double-acting spool on the tractor to operate the two hoses that facilitate horizontal movement. The offset capability makes this flail particularly effective for trimming alongside hedgerows or around trees.

Designed with robust hammer flails and a durable gearbox, this mower excels in controlling tougher grass and weeds. It also provides a refined finish suitable for lawns or sports fields with regular use. The cylindrical rotor features several hammer-style blades arranged in a spiral pattern, optimizing efficiency and producing finer clippings. This design is particularly advantageous for uneven terrain compared to traditional rotary and topper mowers. Additionally, the mower operates via a belt-driven system, utilizing three drive belts to power the blade rotor shaft.

This machine includes an adjustable rear roller, which can be modified with the tractor's top link arm to alter the cutting height and finish. The rear roller is instrumental in preventing blade scalping on uneven surfaces. Furthermore, the mower is equipped with two height-adjustable skids that assist in maintaining an even cut while avoiding scalping during operation.

The Winton 1.25m Hydraulic Side-Shift Flail Mower is compatible with the 3-point linkage of various small or compact tractors.

WHF125 Tractor Hydraulic Side-Shift Flail Mower Features:

• Hydraulic offset A-frame as standard.
• Robust heavy-duty gearbox.
• Spirally arranged hammer blades for an efficient cut.
• Adjustable cutting height range of 3-8cm.
• Adjustable positioning for skids and roller.
• Heavy hammer blades.

Tractor Hydraulic Side-Shift WHF Flail Mower Specifications:

• Weight: 312kg
• Dimensions: 95x140x95cm
• Working Width: 125cm
• Linkage Type: Cat1
• Lower Linkage Width: 77-92cm
• Tractor Range: 20-40HP
• Cutting Range: 3-8cm
• Power: PTO
• Number of Blades: 20
