Winton WHF175 tractor Flail mower

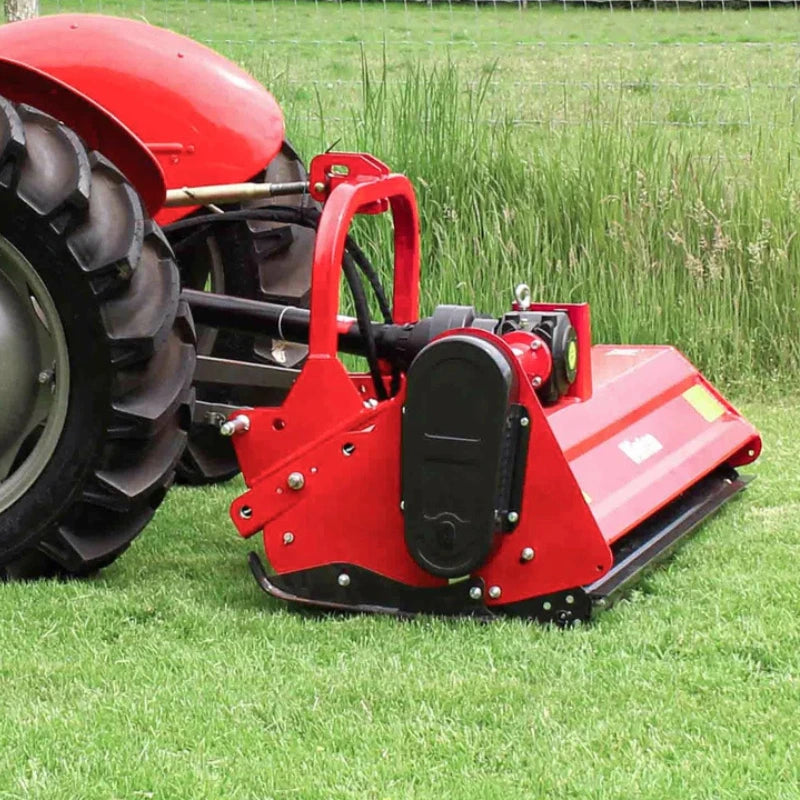

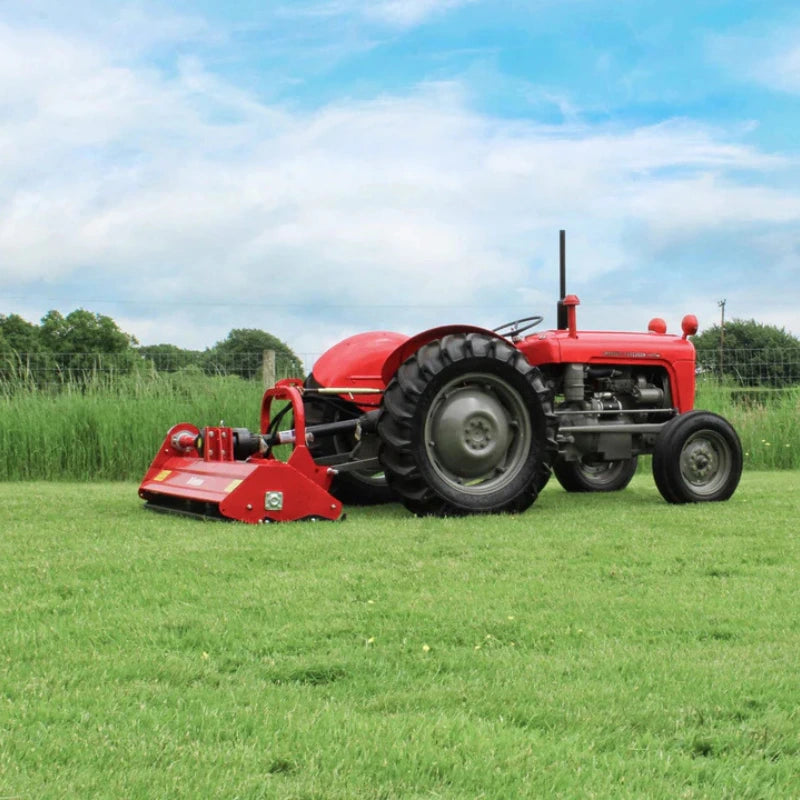

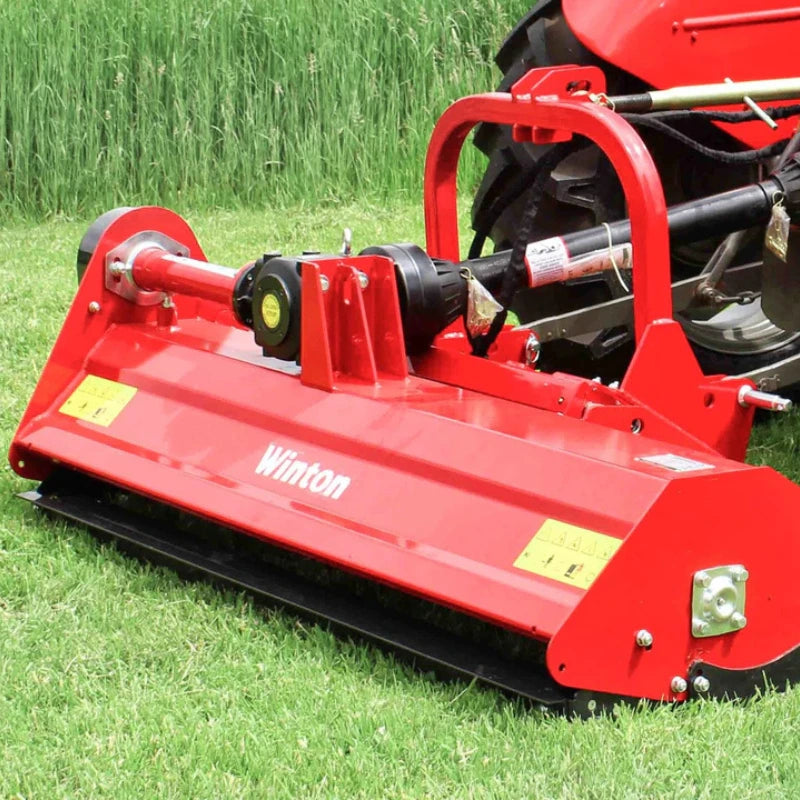

The Winton WHF175 tractor flail mower with Hydraulic Side-Shift is an excellent solution for managing overgrown landscapes. With a 1.75m cutting width and a tractor horsepower requirement of 26–70HP, this mower comes equipped with a hydraulic side-shift A-frame as standard, enhancing manoeuvrability and allowing improved access to difficult-to-reach areas. It requires one double-acting spool on the tractor to operate the two hoses that facilitate horizontal movement. The offset capability makes this flail particularly effective for trimming alongside hedgerows or around trees.

Winton WHF175 Tractor Flail Mower — Hydraulic Side-Shift & Cutting Performance

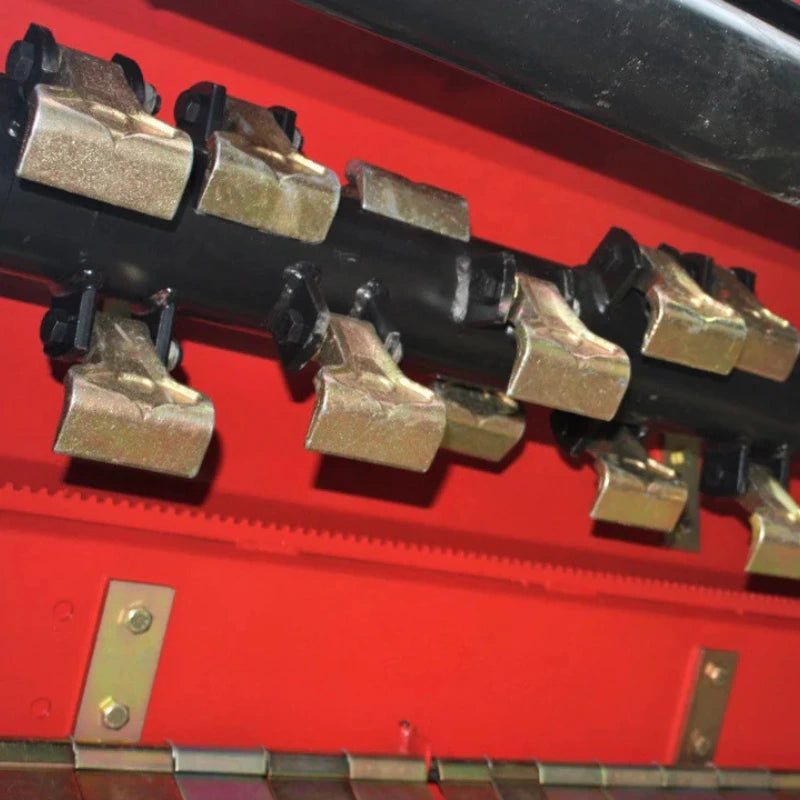

Built with durable hammer flails and a strong gearbox, this mower efficiently handles tough vegetation. It is also effective on lighter grasses and weeds, delivering a neat finish ideal for lawns or sports fields. The cylindrical rotor has spiral-arranged hammer blades, enhancing cutting efficiency and ensuring finer clippings — especially beneficial for tackling uneven terrain. The mower operates through a reliable belt-driven system powered by four drive belts that drive the blade rotor shaft.

Adjustable Cutting Height & Rear Roller

This flail mower includes an adjustable rear roller, which can be modified in height with the tractor's top link arm to achieve the desired cutting height. The rear roller prevents blade scalping on uneven surfaces. Two height-adjustable skids allow further customisation of the cutting height, ensuring an even cut while minimising scalping during operation.

Build Quality & Compatibility

The WHF175 features a double-skin frame for enhanced durability, is CE Safety Certified, and is supplied with hammer flails and a serrated mulching bar for improved debris management. Compatible with CAT 1 three-point hitch tractors from 26–70HP.

Winton WHF175 Tractor Flail Mower Features:

• Hydraulic Side Shift for versatile positioning.
• Central Gearbox with Free Wheel Clutch for smooth operation.
• PTO compatible with most compact tractors.
• Full-width adjustable rear roller for consistent cutting results.
• CE Safety Certified for compliance with European safety standards.
• 4 Belts for maximum power and reliability.
• Double-Skin Frame for enhanced durability.
• Adjustable Side Skids for customisable cutting height.
• CAT 1, 3-Point Hitch for easy attachment.
• Supplied with Hammer Flails for effective cutting performance.
• Serrated Mulching Bar for improved debris management.
