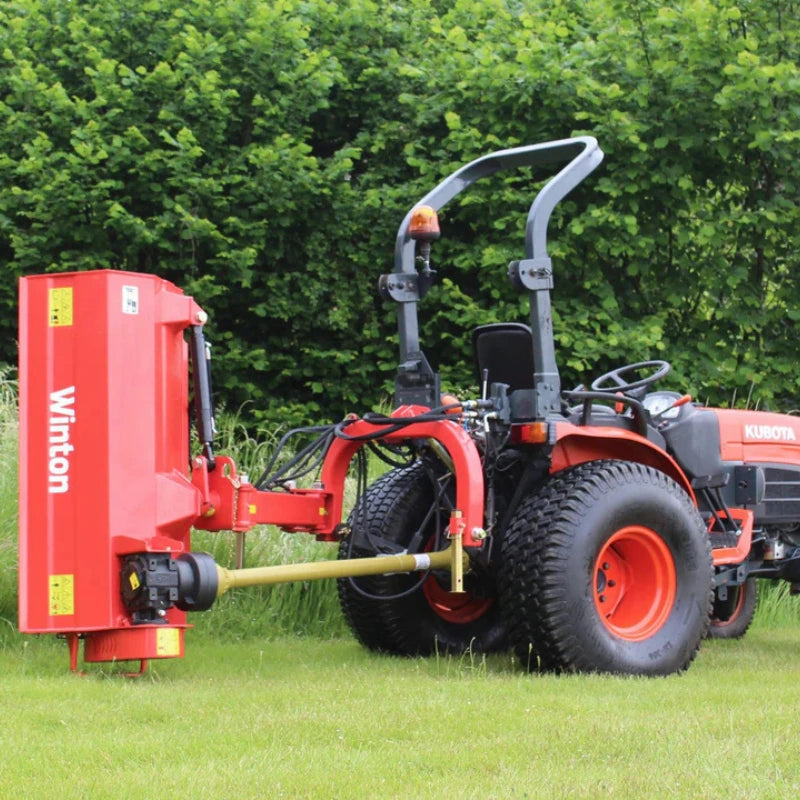

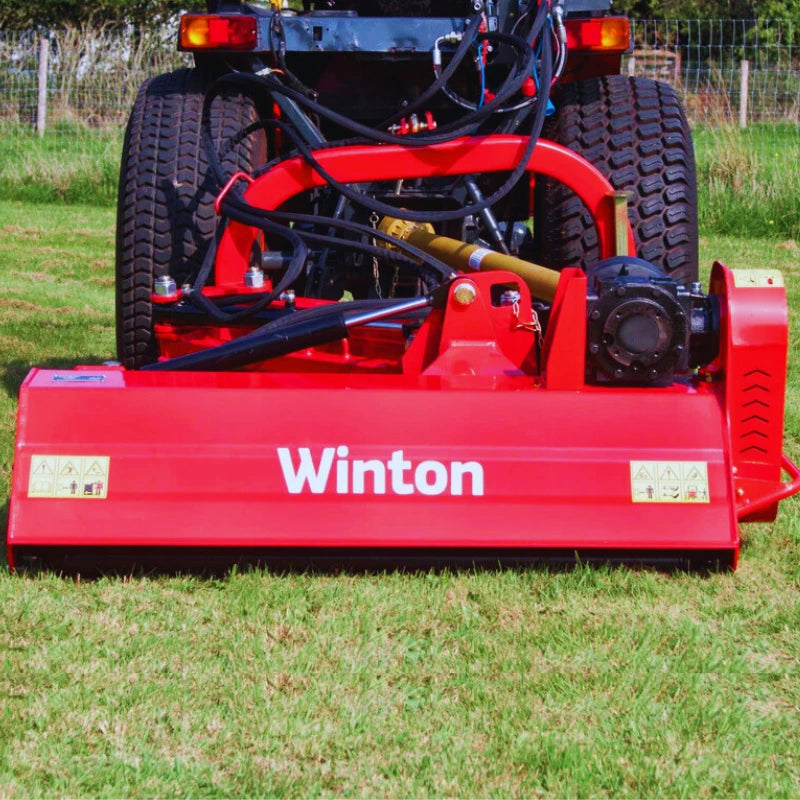

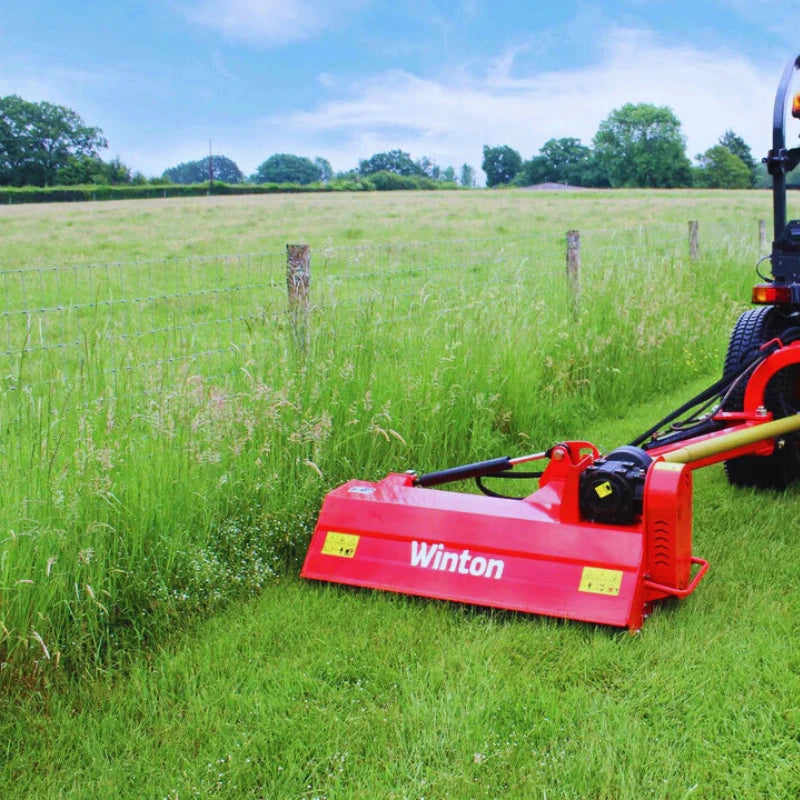

Winton WVF130 1.3m Heavy Duty Tractor PTO Verge Flail Mower

The WVF130 Winton 1.3m Verge Flail Mower is an excellent solution for managing overgrown landscapes. This mower features hydraulic offset capabilities, allowing it to be positioned to the side and angled for better access to difficult areas. It requires two double-acting spools to control the four hoses, which manage the cutting head's horizontal movement and vertical tilt. This design makes the mower particularly effective for trimming around trees when used in a horizontal position. When adjusted to tilt either up or down, the flail can efficiently cut slopes on verges or ditches. Additionally, it can be configured for vertical cutting along the sides of lower hedgerows. The WVF verge flail is specifically designed with a left-hand offset for UK verges.

This verge mower has robust hammer flails and a durable gearbox, for cutting through tougher grass and weeds. It can also be utilized when grass and weeds are at a more manageable height, providing a fine finish when maintained regularly. The cylindrical rotor features several hammer-style blades arranged in a spiral pattern, producing finer clippings. This design is particularly advantageous for uneven terrain compared to traditional rotary and topper mowers. The mower operates via a belt-driven system, utilizing three drive belts to power the blade rotor shaft.

The machine features an adjustable rear roller, which can be raised or lowered using the tractor's top link arm to achieve the desired finish and cutting height. The rear roller helps prevent blade scalping on uneven surfaces. Additionally, two height-adjustable skids enhance customization, ensuring an even cut and preventing scalping during operation.

The Winton 1.3m Verge Flail Mower is compatible with the 3-point linkage of various small or compact tractors.

Winton WVF130 Features:

• Offset function for UK roads – Left-hand offset for effective verge management.
• Hydraulically adjustable head – Offers precise horizontal and vertical positioning.

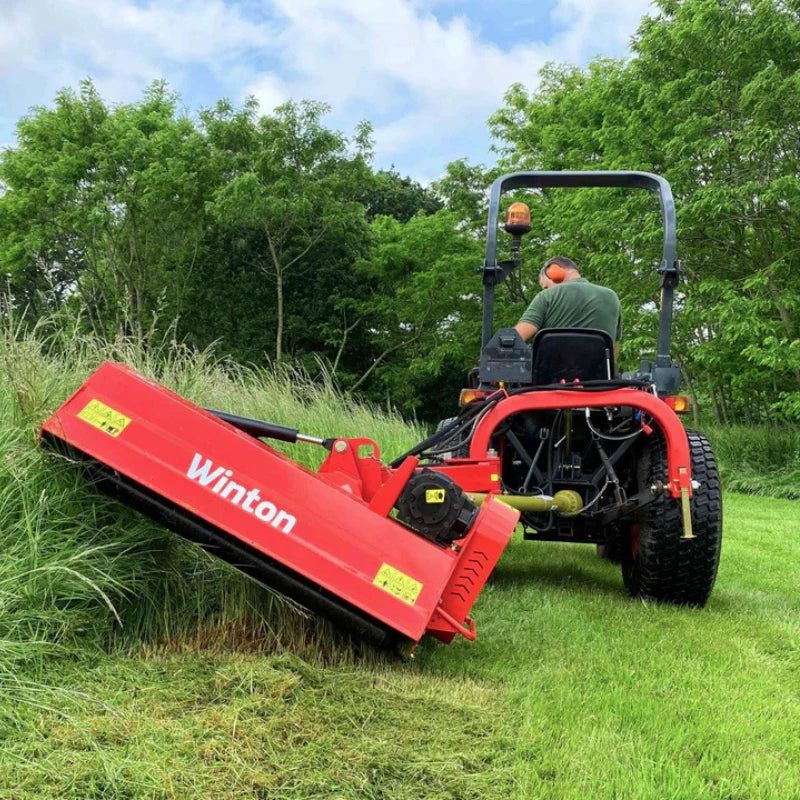

• Vertical and horizontal cutting angles – Cuts upwards 90° and downwards 50°.
• Flail head outside the wheelbase – Enables trimming around obstacles.
• Adjustable roller (3-8 cm) – Customizable cutting height to prevent scalping.
• Spiral hammer blades – Efficient cutting and finer clippings.

WVF130 Verge Flail Mower Specifications:

• Weight: 260kg.
• Dimensions: 76×150×60cm
• Working Width: 130cm
• Tractor Range: 35-55HP
• Linkage Type: Cat1
• Cutting Range: 3-8cm
• Power: PTO/Hydraulic
• Number of Blades: 22
